Product name: vertical cryogenic liquid storage tanks
Color: White or customer demand
Working Pressure: 0.2-3.5Mpa or customer demand
Working medium: liquid nitrogen ,liquid oxgen,liquid argen,LNG
Adiabatic mode: vacuum powder insulation
Type: Vertical or horizontal
Filling rate: 95%
Certification: GB ASME CE
Details Display
Our 0.8MPa and 1.6MPa vertical cryogenic liquid storage tanks are engineered for safe, reliable, and efficient storage of industrial and medical gases including LOX, LIN, LAR, and LNG. Designed with double-wall vacuum insulation and high-quality materials, these tanks minimize evaporation, reduce footprint, and provide long-term liquid state retention.
Orientation: Vertical double-wall design
Design Pressures: 0.8 MPa and 1.6 MPa
Applicable Standards: GB150, GB18442-2019, TSG21-2016
Working Temperature: -196°C
Vacuum Powder Insulation for superior thermal efficiency
| Parameter | 0.8 MPa Tank | 1.6 MPa Tank |
|---|---|---|
| Capacity | 50–200 m³ | 50–150 m³ |
| Working Pressure | 0.8 MPa | 1.6 MPa |
| Medium | LOX / LIN / LAR / LNG | LOX / LIN / LAR / LNG |
| Insulation Type | Vacuum Powder | Vacuum Powder |
| Material | High-quality carbon steel / stainless steel | High-quality carbon steel / stainless steel |
| Orientation | Vertical | Vertical |
Efficient Thermal Insulation: Maintains cryogenic liquids in a stable state for extended periods with advanced vacuum insulation and thermal powder layers.
High Strength & Safety: Designed for earthquake resistance and high structural integrity, preventing leakage and operational hazards.
Environmentally Friendly: Eco-conscious materials and insulation meet modern sustainability standards.
Intelligent Monitoring: Real-time monitoring of liquid level, pressure, and temperature, with early warning systems for operational safety.
Customizable: Tailored solutions for specific site requirements, including piping, instrumentation, and capacity modifications.
Storage of liquid oxygen, nitrogen, and argon for steel, chemical, metallurgical, and pharmaceutical industries.
Supports welding, cutting, and production processes requiring stable gas supply.
LNG storage and supply for industrial plants, storage stations, and vaporization stations.
Ensures safe and reliable energy supply for facilities.
Safe storage of blood, vaccines, cells, and tissues for hospitals, biotech, and research institutions.
Ensures quality and effectiveness of medical storage.
Industry: Steel & Metallurgy
Challenge: The plant required a stable supply of liquid oxygen for welding and cutting operations, minimizing evaporation loss and ensuring continuous production.
Solution: CNCD supplied a 100 m³ 0.8 MPa vertical cryogenic tank with advanced vacuum powder insulation and real-time monitoring system.
Results:
Daily evaporation reduced by 30%
Continuous supply of oxygen ensured uninterrupted welding operations
Intelligent monitoring enabled early detection of potential issues
Industry: Energy & Utilities
Challenge: A regional LNG storage station needed a high-pressure cryogenic tank to safely store and supply LNG for industrial and commercial energy users.
Solution: CNCD provided a 150 m³ 1.6 MPa vertical cryogenic liquid storage tank with high-strength construction and smart monitoring system.
Results:
Reliable LNG supply during peak demand
High-pressure design ensured operational safety
Reduced maintenance frequency and improved operational efficiency
Industry: Medical & Biotech
Challenge: The laboratory required secure storage for vaccines, cells, and tissue samples, with precise temperature control and minimal risk of contamination.
Solution: CNCD installed a 50 m³ 0.8 MPa vertical cryogenic liquid nitrogen tank with vacuum insulation and intelligent monitoring for liquid level and temperature.
Results:
Stable liquid nitrogen supply maintained sample quality
Automated monitoring reduced manual checks and operational errors
Compliance with GMP and medical storage standards
Industry: Chemical
Challenge: Continuous production required a reliable supply of liquid argon with minimal downtime and safe operation.
Solution: CNCD delivered a 75 m³ 1.6 MPa vertical cryogenic tank with environmental-friendly insulation and robust earthquake-resistant design.
Results:
Safe and uninterrupted argon supply
Reduced risk of leakage and operational hazards
Enhanced sustainability and compliance with environmental standards
Customized Solutions: Personalized design and installation for unique industrial and medical applications.
Technical Support: Professional guidance on installation, commissioning, and maintenance for all tank models.
After-Sales Service: Ongoing support and maintenance to ensure reliable operation.
Proven Expertise: Years of experience in cryogenic storage solutions across multiple industries.
| Model | Working Medium | Volume(M3) | Weight | Size(mm) | Working Pressure |
| CFL-5/0.8 | LO2/LAR/LN2 | 5 | 3412 | Φ2000*5130 | 0.8MPa |
| CFL-10/0.8 | 10 | 5378 | Φ2100*717 | ||
| CFL-15/0.8 | 15 | 6415 | Φ2500*6912 | ||
| CFL-20/0.8 | 20 | 8673 | Φ3000*6100 | ||
| CFL-30/0.8 | 30 | 12899 | Φ2900*8870 | ||
| CFL-50/0.8 | 50 | 18960 | Φ3100*12058 | ||
| CFL-100/0.8 | 100 | 34480 | Φ3600*15947 | ||
| CFL-150/0.8 | 150 | 53500 | Φ3600*23000 | ||
| CFL-200/0.8 | 200 | 65500 | Φ3924*26000 | ||
| CFL-5/1.6 | LO2/LAR/LN2 | 5 | 3945 | Φ2000*5130 | 1.6MPa |
| CFL-10/1.6 | 10 | 6787 | Φ2000*7895 | ||
| CFL-15/1.6 | 15 | 8628 | Φ2400*7552 | ||
| CFL-20/1.6 | 20 | 10744 | Φ2400*9371 | ||
| CFL-25/1.6 | 25 | 13500 | Φ2700*8980 | ||
| CFL-30/1.6 | 30 | 14640 | Φ2700*10310 | ||
| CFL-40/1.6 | 40 | 19884 | Φ3100*9985 | ||
| CFL-50/1.6 | 50 | 23370 | Φ3100*12058 | ||
| CFL-100/1.6 | 100 | 44050 | Φ3400*17930 |
Q1: How can I minimize operational costs?
Chengde’s low daily evaporation rates significantly reduce product loss, helping you save money.
Q2: Can I trust the quality?
All our products meet GB, ASME, and CE certifications and are subjected to rigorous quality control.
Q3: Will the tank fit my specific needs?
Our comprehensive customization options ensure our tanks meet your exact requirements, from volume and pressure to branding.
Related Products
Cryogenic Liquid Cylinders(VGL)
As a low-temperature insulated pressure vessel, gas cylinders are mainly used for storing and transporting liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide, and liquefied natural gas, and can automatically and continuously provide gas.
Cryogenic liquid storage tank is a series of products of producing first, second third types of pressure vessel(Cryogenic liquid storage tank is a series of products about first/second/third type pressure vessels manufactured by our company)
Cryogenic Liquid Storage Tanks (LCO2)
Liquid carbon dioxide storage tank can be classified into polyurethane foaming insulation tank and the vacuum powder adiabatic tank, with a designed working temperature of minus 40 ℃, Its main material can be OCr18Ni9 or 16MnDR according to the different working condition.
Cryogenic Liquid Storage Tanks
Cryogenic liquid storage tanks are specialized containers that store materials at extremely low temperatures, typically below -150 °C. These tanks are essential for the storage of liquefied gases such as liquid oxygen, liquid nitrogen, liquid argon, liquid hydrogen, and helium.
RELATED PROJECT
Natural Gas Industry

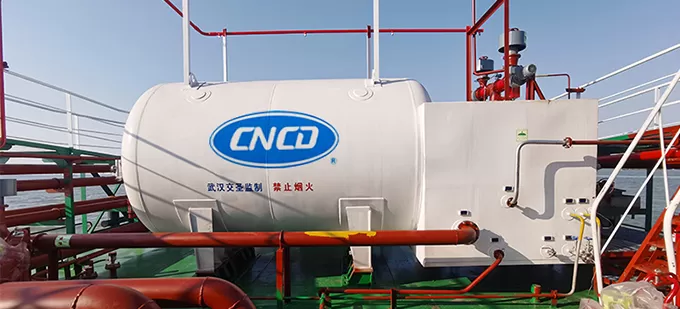

This project aims to provide a large ocean-going cargo ship with an efficient and environmentally friendly marine fuel tank solution.
