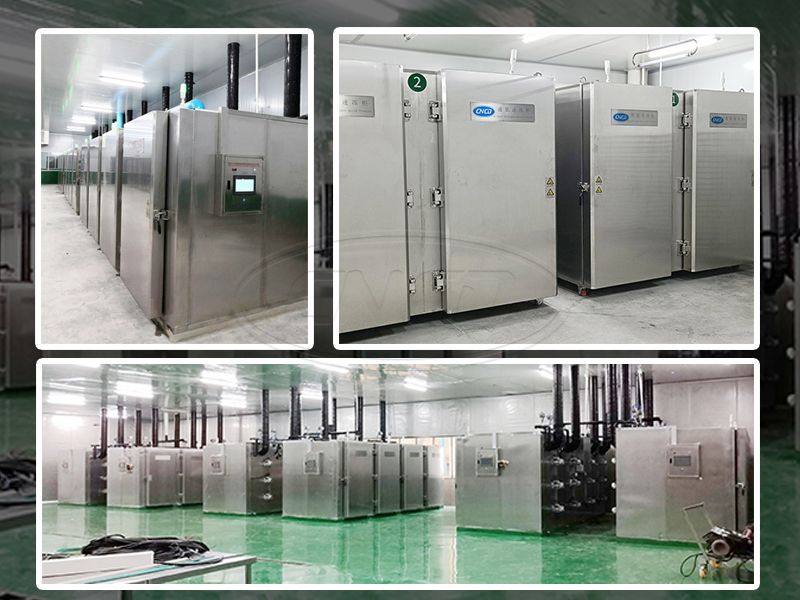

Liquid nitrogen freezer is an industrial or experimental equipment that uses liquid nitrogen (-196℃) to achieve ultra-fast freezing. It is suitable for food processing, biological sample freezing, and quick freezing of pharmaceutical products.
Details Display
Product Introduction：
A liquid nitrogen freezer is an ultra-low temperature storage system that uses liquid nitrogen (LN₂) to preserve biological samples, cells, tissues, and other sensitive materials at temperatures as low as -196°C (-321°F). These freezers are essential in research laboratories, biobanks, fertility clinics, and pharmaceutical industries for long-term cryopreservation.
Product features：
Safety and reliability: Multiple safety interlocking designs ensure the safety and reliability of operators and production sites.
Sanitation and environmental protection: The machine is manufactured and produced in strict accordance with relevant standards for food machinery. The whole machine adopts a fully welded structure of food-grade 304 stainless steel. The machine body and internal parts are easy to move and clean, which fully complies with the design of sanitary engineering.
High configuration: Adopting low-temperature valves of world-renowned brands, PLC plus touch screen intelligent temperature control, interlayer adopts special low-temperature resistant insulation materials, and friendly human-machine operation interface.
Low energy consumption: The patented design of high-efficiency cold capacity transmission fan can quickly form an ultra-low temperature wind field, improve the utilization rate of cold capacity, and reduce the energy consumption of liquid nitrogen by 30% year-on-year.
Flexible response: The equipment adopts international advanced design technology, easy to operate; fewer moving parts, quick and timely response, and easy maintenance. The equipment occupies a small area, which can fully improve the space utilization rate.
Formula mode: Customized fresh-keeping formulas for different food characteristics, hundreds of fresh-keeping quick-freezing process formulas for food ingredients, to ensure the original quality of frozen food ingredients, consistent.
Product Parameters：
Model | Equipment dimensions (appearance) (width x depth x height) | Power (Kw) | Freezing output (Kg/hour) |
DJL-QF-50A | 1550x1300x2000 | 1 | 50 |
DJL-QF-100A | 1550x1300x2000 | 1.5 | 100 |
DJL-QF-150A | 1550x1350x2300 | 1.5 | 150 |
DJL-QF-300A | 1750x1750x2300 | 2.5 | 300 |
DJL-QF-600A | 2700x2000x2300 | 3.5 | 600 |
DJL-QF-1200A | 3800x2000x2300 | 7 | 1200 |
DJL-QF-2000A | 5950x2300x2550 | 10 | 1500 |
DJL-QF-3000A | 6050x2600x2550 | 10 | 2000 |
Remark：

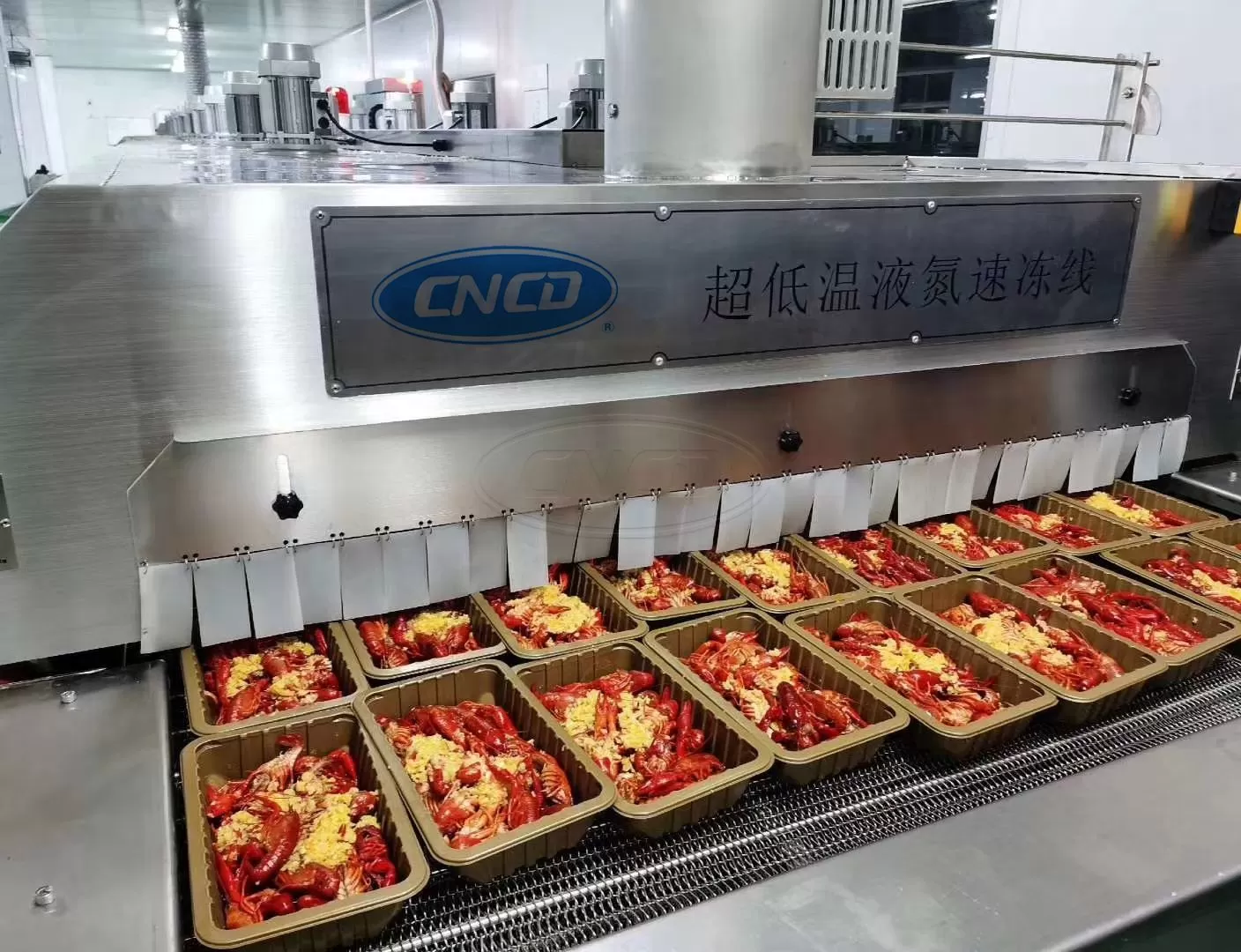

Suitable for IQF and tray freezing
It is suitable for different quick-freezing needs, with small footprint, low energy consumption, simple operation and convenient maintenance.
In actual production, due to differences in food freezing and process freezing, the actual production capacity may be higher than the capacity listed above.
We can customize equipment of various customer site specifications according to customer requirements.
The partition modules can be flexibly designed according to customer requirements to minimize consumption and run different processes and process different products on one machine at the same time.
